Structured Data in 2020

Published 10 January, 2020.

Structured data is a way to describe a web page so it’s easier for a computer to read it. Normally, this is so search engines are able to show rich data about your page.

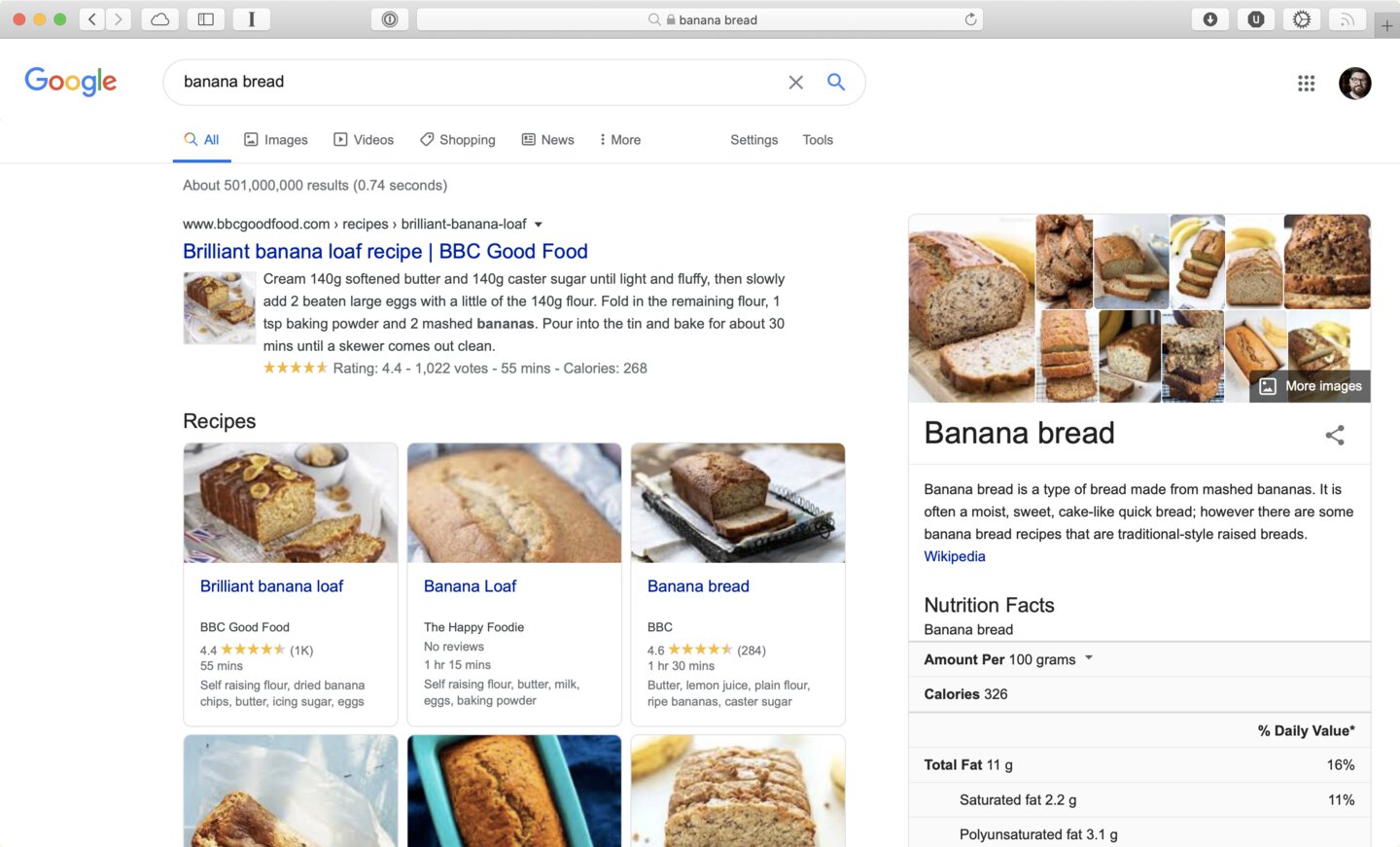

Google search result showing rich data about Banana Bread recipes

The last time I thought about embedding structured data in a web page, Microformats were a new, exciting idea. I was horrified to discover that was almost fifteen years ago! The web has changed a lot since then, so I had lots to re-learn about this topic.

The most confusing thing to me was understanding the separation of vocabularies (the schema for data) and encodings (the structure of the data).

Vocabularies

Vocabularies are analogous to a database schema. A vocabulary is list of field names and expected data types for that field.

Schema.org is an organisation backed by the big players in the search industry. It defines vocabularies for all sorts of things.

For example, there’s a schema for recipes which defines fields for ingredients, instructions, the yield of the recipe, the cuisine of the recipe, etc.

Encodings

These vocabularies can be encoded into an HTML document using three encodings: Microdata, RDFa, and JSON-LD.

Microdata and RDFa

Microdata and RDFa work by adding attributes to an existing HTML document.

Here’s an example of Microdata from Schema.org:

<div itemscope itemtype="http://schema.org/Recipe">
  <span itemprop="name">Mom's World Famous Banana Bread</span>
  By <span itemprop="author">John Smith</span>,
  <meta itemprop="datePublished" content="2009-05-08">May 8, 2009
  <img itemprop="image" src="bananabread.jpg"
       alt="Banana bread on a plate" />
  <span itemprop="description">This classic banana bread recipe comes
  from my mom -- the walnuts add a nice texture and flavor to the banana
  bread.</span>
  Prep Time: <meta itemprop="prepTime" content="PT15M">15 minutes
  Cook time: <meta itemprop="cookTime" content="PT1H">1 hour
  Yield: <span itemprop="recipeYield">1 loaf</span>
  Tags: <link itemprop="suitableForDiet" href="http://schema.org/LowFatDiet" />Low fat
  <div itemprop="nutrition"
    itemscope itemtype="http://schema.org/NutritionInformation">
    Nutrition facts:
    <span itemprop="calories">240 calories</span>,
    <span itemprop="fatContent">9 grams fat</span>
  </div>
  Ingredients:
  - <span itemprop="recipeIngredient">3 or 4 ripe bananas, smashed</span>
  - <span itemprop="recipeIngredient">1 egg</span>
  - <span itemprop="recipeIngredient">3/4 cup of sugar</span>
  ...
  Instructions:
  <span itemprop="recipeInstructions">
  Preheat the oven to 350 degrees. Mix in the ingredients in a bowl. Add
  the flour last. Pour the mixture into a loaf pan and bake for one hour.
  </span>
</div>

Here’s the same example, but this time in RDFa:

<div vocab="http://schema.org/" typeof="Recipe">
  <span property="name">Mom's World Famous Banana Bread</span>
  By <span property="author">John Smith</span>,
  <meta property="datePublished" content="2009-05-08">May 8, 2009
  <img property="image" src="bananabread.jpg"
    alt="Banana bread on a plate" />
  <span property="description">This classic banana bread recipe comes
  from my mom -- the walnuts add a nice texture and flavor to the banana
  bread.</span>
  Prep Time: <meta property="prepTime" content="PT15M">15 minutes
  Cook time: <meta property="cookTime" content="PT1H">1 hour
  Yield: <span property="recipeYield">1 loaf</span>
  Tags: <link property="suitableForDiet" href="http://schema.org/LowFatDiet" />Low Fat
  <div property="nutrition" typeof="NutritionInformation">
    Nutrition facts:
    <span property="calories">240 calories</span>,
    <span property="fatContent">9 grams fat</span>
  </div>
  Ingredients:
  - <span property="recipeIngredient">3 or 4 ripe bananas, smashed</span>
  - <span property="recipeIngredient">1 egg</span>
  - <span property="recipeIngredient">3/4 cup of sugar</span>
  ...
  Instructions:
  <span property="recipeInstructions">
  Preheat the oven to 350 degrees. Mix in the ingredients in a bowl. Add
  the flour last. Pour the mixture into a loaf pan and bake for one hour.
  </span>
</div>

These are nice, simple approaches. However, embedding structured data into the body of an HTML document can quickly become unwieldy.

JSON- LD

Here’s the same data from the previous examples, but this time in JSON-LD:

<script type="application/ld+json">
{
  "@context": "http://schema.org",
  "@type": "Recipe",
  "author": "John Smith",
  "cookTime": "PT1H",
  "datePublished": "2009-05-08",
  "description": "This classic banana bread recipe comes from my mom -- the walnuts add a nice texture and flavor to the banana bread.",
  "image": "bananabread.jpg",
  "recipeIngredient": [
    "3 or 4 ripe bananas, smashed",
    "1 egg",
    "3/4 cup of sugar"
  ],
  "name": "Mom's World Famous Banana Bread",
  "nutrition": {
    "@type": "NutritionInformation",
    "calories": "240 calories",
    "fatContent": "9 grams fat"
  },
  "prepTime": "PT15M",
  "recipeInstructions": "Preheat the oven to 350 degrees. Mix in the ingredients in a bowl. Add the flour last. Pour the mixture into a loaf pan and bake for one hour.",
  "recipeYield": "1 loaf",
  "suitableForDiet": "http://schema.org/LowFatDiet"
}
</script>

This has the downside of duplicating some information, but it far more flexible than Microdata or RDFa. It’s able to be manipulated on the client side, and is Google’s recommended encoding.

Testing

Google provides a very useful Structured Data Testing Tool which makes it simple to show how structured data is being parsed.
